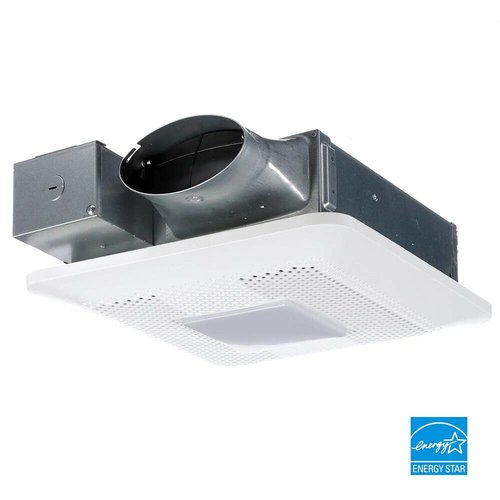

Panasonic FV0810RSL1
Ventilating Fan

Description

Specifications

• Lighting

  Yes

• Duct Size

  4 inch diameter

• Type

  Bathroom/Utility Room

• Brand

  Panasonic

• Model

  FV0810RSL1

• Airflow 1 (cfm)

  100

• Airflow 2 (cfm)

  80

• Efficacy 1 (cfm/Watt)

  3.7

• Efficacy 2 (cfm/Watt)

  3.6

• Number of Speeds

  2

• Sound Level (sones)

  0.5 - 1.1

• Energy Efficiency - Measured Outside the Fixture (lm/W)

  77.6

• Total Light Output (lumens)

  779

• Light Source Life (Hours)

  50000

• Total Input Power (Watts)

  1

• Available On Market

  2018-10-01

• Lighting Technology

  LED

• Light Color Quality (CRI)

  97

• Light Color Appearance (CCT)

  3000K

• Special Features (Dimming, Motion Sensing, etc.)

  Continuous Dimming

• Bathroom and Utility Room Airflow at 0.25 in. w.g.

  90.0
