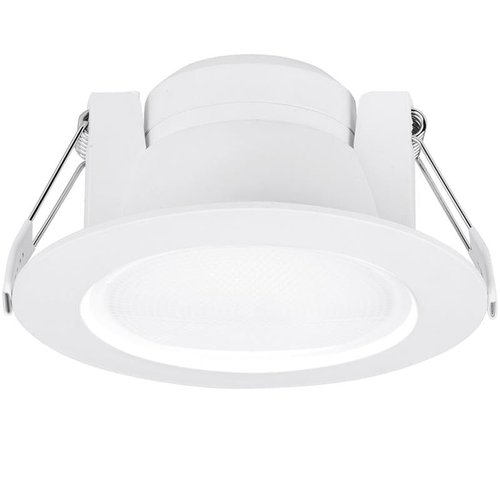

Aurora EN-DL10/30 LED 10W 840lm
Light Fixture

Description

Performance - that’s what the Uni-Fit™ range of commercial downlights stands for. Featuring ThermoTec™ technology, integrated driver and high quality LED chips to deliver serious lumen performance. The Uni-Fit™ range is the ideal cost effective solution for new or existing installations where traditional compact fluorescent downlights need upgrading to more efficient LED technology. Lumens Per Watt (lm/W): 70 LED Chip Type: 2835 Power Factor: 0.5 No. of LEDs: 30 Material: Polycarbonate Surge Protection (kV): 1.5 kV Multiple sizes and wattages available to suit all new and retrofit installation lighting requirements ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat sinking and thermoplastic material for longer life and consistent performance Compact integrated driver allows for easy installation Life not affected by frequent switching e.g. when used with occupancy controls Pre-wired with 500mm 2-core cable 1.5kV surge protection Overall Height (mm): 60 mm 3 year warranty

Specifications

• Brand

  Aurora

• Model

  EN-DL10/30

• Mains or non-mains

  MLS

• Light source cap-type (or other electric interface)

  Integrated LED

• Dimmable

  NO

• beamAngle

  100

• Non-directional or directional

  DLS

• Energy Class

  F

• On-mode power (W)

  10

• Useful luminous flux (lm)

  840

• Flicker metric

  0.1

• Depth (mm)

  120

• Width (mm)

  120

• Survival factor

  1

• Height (mm)

  60

• Energy consumption in on-mode (kWh/1000h)

  10

• Colour consistency in McAdam ellipses

  3

• Available On Market

  [2021, 9, 1]

• Chromaticity coordinate (x)

  0.435

• Chromaticity coordinate (y)

  0.395

• Displacement factor

  0.9

• Lighting technology used

  LED

• Colour Rendering Index (CRI)

  80

• Displacement factor

  522

• Lumen maintenance factor

  0.9

• R9 Colour rendering index

  9

• Beam angle correspondence

  NARROW_CONE_90

• Correlated colour temperature (Max) (K)

  3000

• Correlated colour temperature (Min) (K)

  3000

• correlatedColourTempType

  SINGLE_VALUE

• Stroboscopic effect metric

  0.2
