Broan ZB90LC
Ventilating Fan

Not rated

  • Price:

    See offers

    See offers →

  • Rebates:

    Currently unavailable

    *Rebates for 43215, Columbus, Ohio

    More info →

  • Annual cost of ownership:

    Currently unavailable

    *Annual cost of ownership for Ohio

    More info →

  • Report incorrect product information

Total cost of ownership (TCO)

N/A

Rebates

No rebates were found for this item in your area.

To view all rebates available in your area, go to the rebates page →.

Description

The Ventilating Fans Broan ZB90LC is a powerful and efficient unit designed for use in bathroom/utility rooms. With its 6-inch diameter duct size, it effectively circulates air to maintain a fresh and comfortable environment. This Broan model features an integrated lighting system, providing both functionality and illumination with its fluorescent technology. The light output reaches up to 1200 lumens, ensuring excellent visibility in the room. Equipped with three or more speeds, this ventilating fan allows you to adjust the airflow according to your preference. The airflow capacity ranges from 30 CFM on the lowest setting to 90 CFM on the highest setting, making it suitable for different ventilation needs. With an efficacy of 12.5 CFM/W at the highest speed and a power factor yet to be determined, this fan offers energy-efficient operation while maintaining optimal performance. It has a total input power of just 1 watt. The sound level of this fan is impressively low,

Specifications

    • Lighting

      Yes

    • Duct Size

      6 inch diameter

    • Type

      Bathroom/Utility Room

    • Brand

      Broan

    • Model

      ZB90LC

    • Airflow 1 (cfm)

      90

    • Airflow 2 (cfm)

      50

    • Airflow 3 (cfm)

      30

    • Efficacy 1 (cfm/Watt)

      12.5

    • Efficacy 2 (cfm/Watt)

      11.9

    • Efficacy 3 (cfm/Watt)

      10

    • Number of Speeds

      3 or more

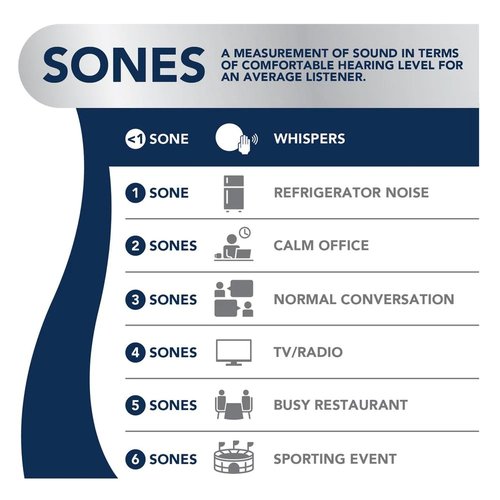

    • Sound Level (sones)

      0.3 - 0.3

    • Energy Efficiency - Measured Outside the Fixture (lm/W)

      75.2

    • Total Light Output (lumens)

      1200

    • Light Source Life (Hours)

      10000

    • Total Input Power (Watts)

      1

    • Available On Market

      2012-03-15

    • Lighting Technology

      Fluorescent

    • Light Color Quality (CRI)

      82

    • Light Color Appearance (CCT)

      3500K

    • Special Features (Dimming, Motion Sensing, etc.)

      Non-Dimmable

    • Bathroom and Utility Room Airflow at 0.25 in. w.g.

      92.7
